T34-R45H09C95-1-12-22R
Spiral Flute Tap; 1″ × 2.12 mm - 12 ; 5.5118″ OAL ; 4 FL ; HSS-E-PM ; TiAlN | WC/C ; 2BX ; Series T34
Additional Tariff Surcharge of 8 %

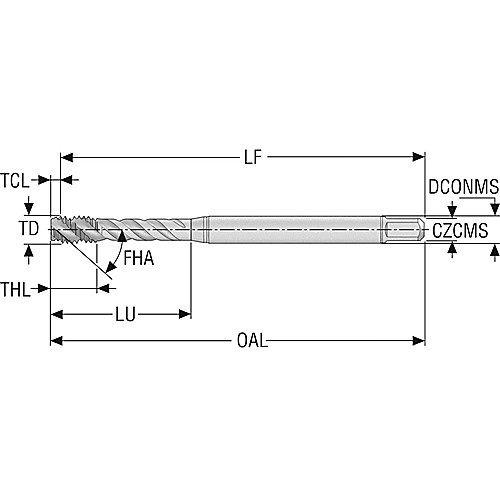

| Thread Diameter Size (TDZ) | 1″ | Coating | TiAlN | WC/C |
| Thread Pitch (TP) | 2.12 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 12 | Flute Type | Spiral |
| Thread Standard | UNF | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 5.5118″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 1.063″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 2.9697″ | Square Size | 20.320 × 15.24 mm |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Tapping Prehole Diameter (Pre-hole) | 0.9173″ |
| Flute Helix Angle (FHA) | 45 | ToolTypeName | Spiral Flute |
| Cutting Length | 2.9697″ | Thread Form Type (THFT) | UNF |
| Applicable Material | | General Purpose | | Series/List # | T34 |
| Cutting Edge Material | HSSE-PM | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 2BX | Drive Size (DRVS) | 20.320x15.24 mm |
| Tool Type | General Purpose | Thread Size | 1″ - 12 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.64
