T34-R45H08C93-12-24-22R
Spiral Flute Tap; 0.216″ × 1.06 mm - 24 ; 3.2362″ OAL ; 3 FL ; HSS-E-PM ; TiAlN | WC/C ; 2BX ; Series T34
Additional Tariff Surcharge of 8 %

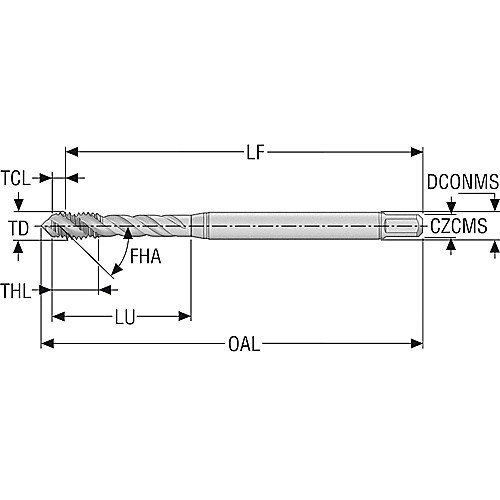

| Thread Diameter Size (TDZ) | #12 | Coating | TiAlN | WC/C |
| Thread Pitch (TP) | 1.06 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 24 | Flute Type | Spiral |
| Thread Standard | UNC | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 3.2362″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.3937″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 1.1906″ | Square Size | 5.588 × 4.19 mm |
| Connection Diameter Machine Side (DCONMS) | 0.22″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Tapping Prehole Diameter (Pre-hole) | 0.1772″ |
| Flute Helix Angle (FHA) | 45 | ToolTypeName | Spiral Flute |
| Cutting Length | 1.1906″ | Thread Form Type (THFT) | UNC |
| Applicable Material | | General Purpose | | Series/List # | T34 |
| Cutting Edge Material | HSSE-PM | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 2BX | Drive Size (DRVS) | 5.588x4.19 mm |
| Tool Type | General Purpose | Thread Size | #12 - 24 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.03
