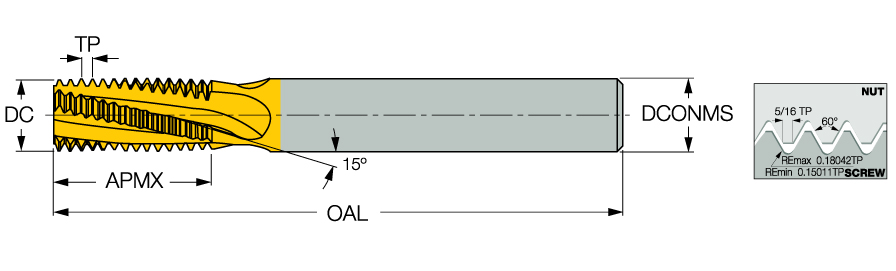

| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.47″ | Grade | IC908 |
| Overall Length (OAL) | 3.307″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 5 | Depth of Cut Maximum (APMX) | 1.051″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | | Thread Form Type (THFT) | UN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

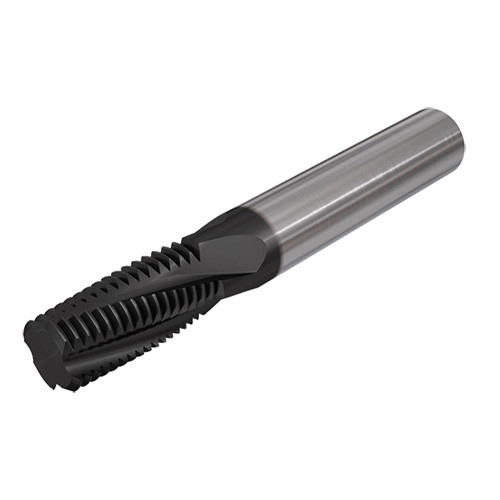

| Family Description | Solid carbide external threading endmills used for UNJ thread profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.280
