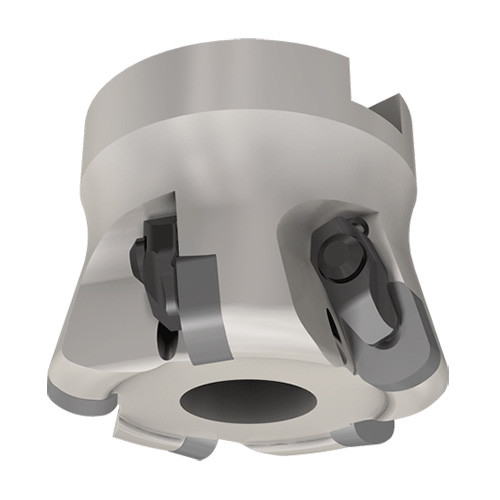

EFN FD50-5-22-09X
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 1.5 mm LOC ; 5 Inserts

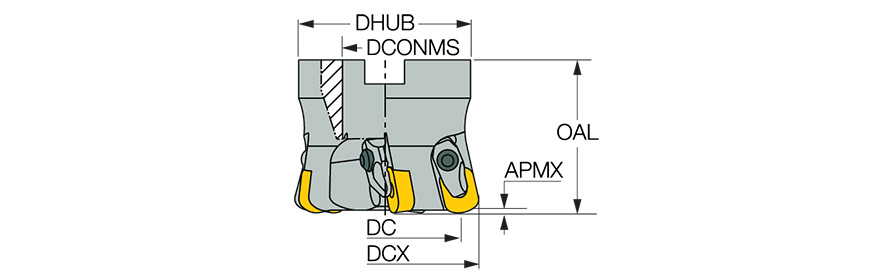

| Cutting Diameter (DC/DCX) | 50 mm | Arbor Style | A |
| Cutting Diameter (DC) | 39.4 mm | Master Insert Identification (MIID) | EFN WDNX 0904-E04 |
| Cutting Diameter Maximum (DCX) | 50 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 1.5 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Type | Fast Feed Face mill |
| Hub Diameter (DHUB) | 45 mm |
Product Features
| Family Description | Fast feed face mills carrying double-sided Inserts with 4 cutting edges | Country of Origin | S.Korea |
| Remarks | For machining recommendations click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
427
