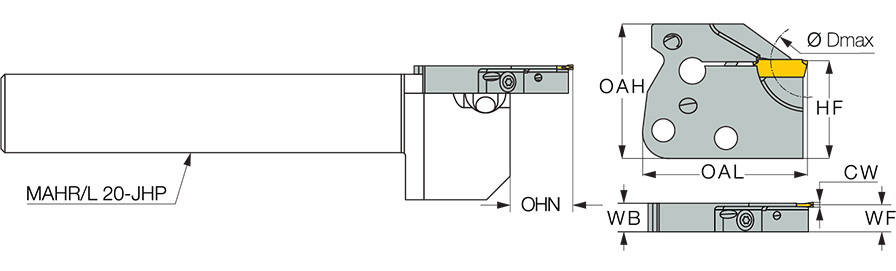

| Body Width (WB) | 0.276″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.866″ |
| Overall Length (OAL) | 1.594″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 1.299″ | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Functional Width (WF) | 0.256″ |
| Body Material | Steel | Tool Assembly Length (LTA) | 1.551″ |
| Tool Type | Parting & Grooving Tools |
Product Features

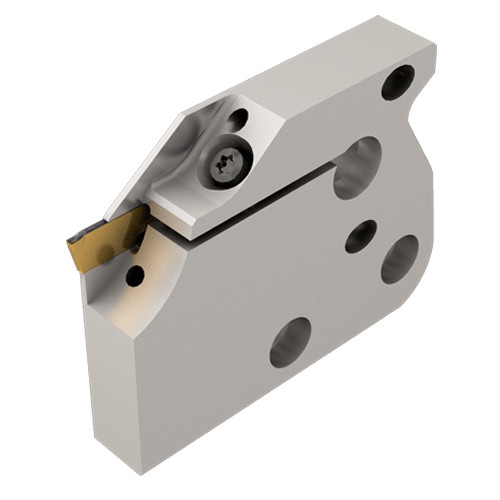

| Family Description | MODULAR-GRIP adapters with high-pressure coolant channels for parting and grooving inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
65
