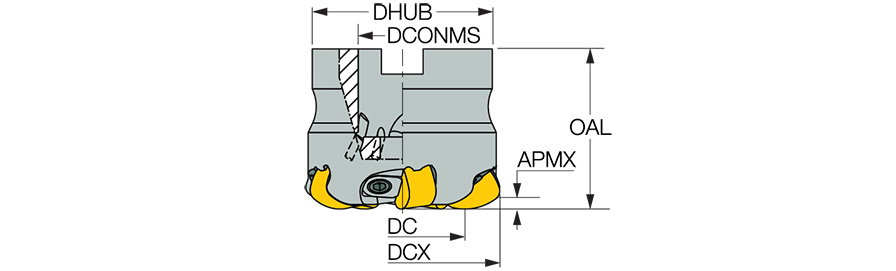

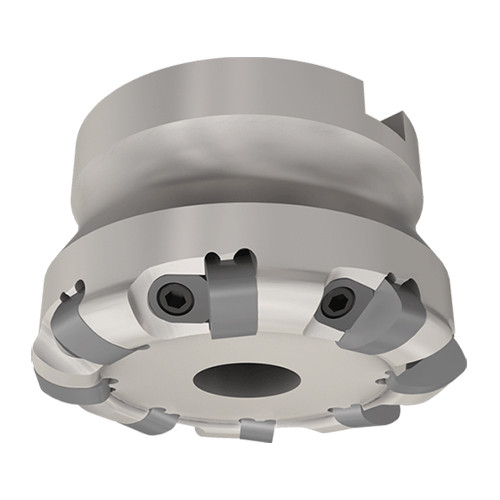

FFN FD063-6-22-12F
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 2.5 mm LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 63 mm | Arbor Style | A |
| Cutting Diameter (DC) | 45.7 mm | Master Insert Identification (MIID) | FFN WNGF 1207-E04 |
| Cutting Diameter Maximum (DCX) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2.5 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Type | Fast Feed Face mill |
| Hub Diameter (DHUB) | 47 mm |
Product Features
| Family Description | Fast feed face mills carrying double-sided Inserts with 6 cutting edges | Country of Origin | S.Korea |

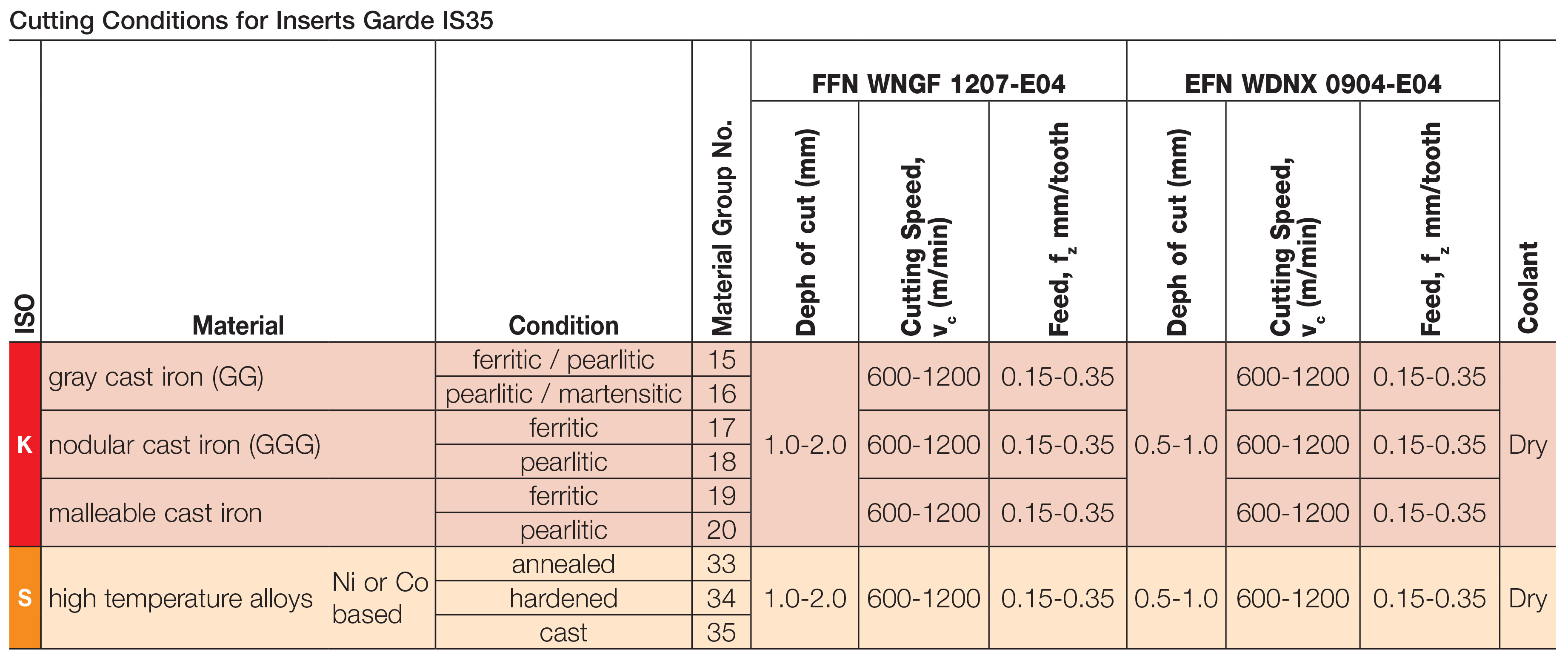

| Remarks | For machining recommendations click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
617
