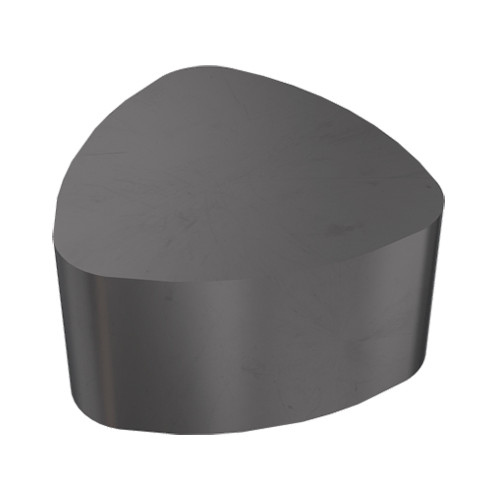

FFN WNGF 1207-E04 IS35

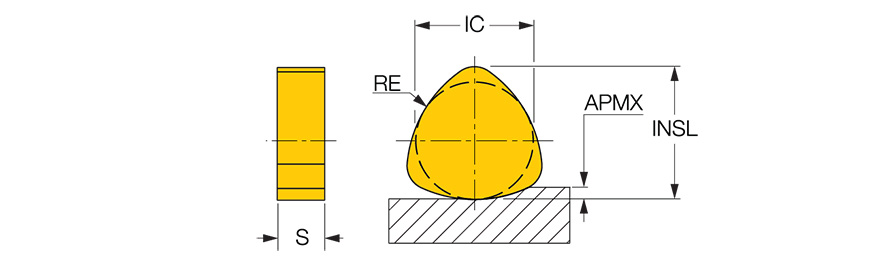

| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Grade | IS35 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Tool Type | Turn Positive Inserts |
| Insert Style | FFN | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 13 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Insert Size | NGF 12 | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 7 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Inscribed Circle Diameter (IC) | 12 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
Product Features
| Family Description | Double-sided ceramic inserts with 6 cutting edges for fast feed machining | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.010
