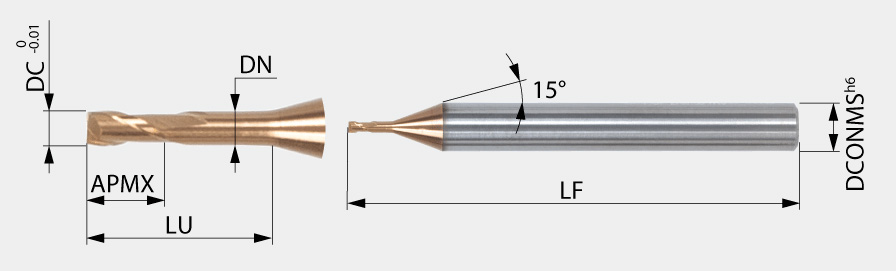

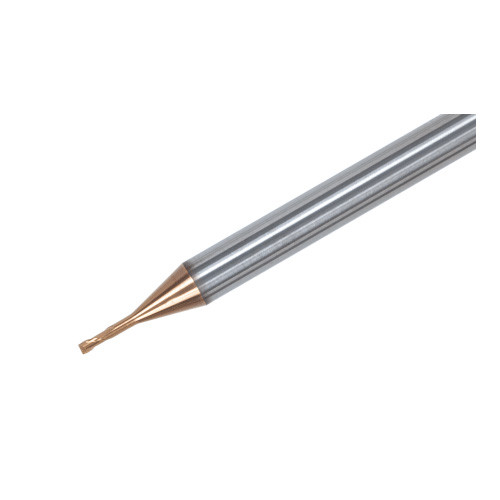

TEC040A2-060/10C6H-55 AH3005
SQ End Mill; 4 mm Dia. × 6 mm LOC × 6 mm Shank Dia. × 55 mm OAL ; 2 FL
| Cutting Diameter (DC) | 4 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | AH3005 |
| Depth of Cut Maximum (APMX) | 6 mm | Neck Diameter (DN) | 3.9 mm |
| Overall Length (OAL) | 55 mm | Head Length (LH) | 10 mm |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square |
Product Features
| Family Description | 2 flute endmill,30 deg helix angle,Long neck type,for hardened steel | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
