TEB030A2-045/08C6H-38 AH3005

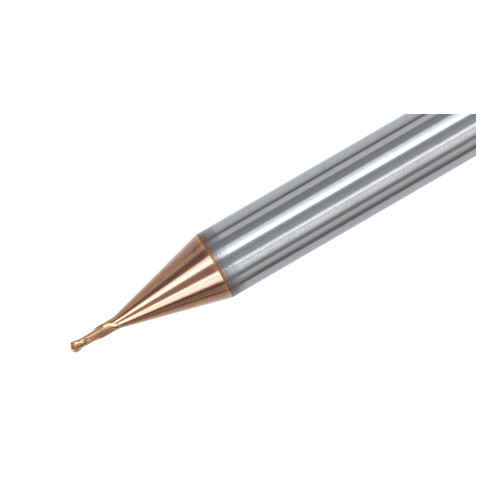

BN End Mill; 3 mm Dia. × 4.5 mm LOC × 6 mm Shank Dia. × 38 mm OAL ; 2 FL

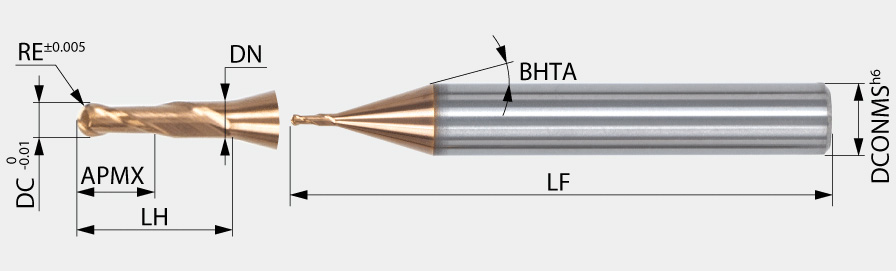

| Cutting Diameter (DC) | 3 mm | Application | | Profile Milling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1.5 mm |
| Depth of Cut Maximum (APMX) | 4.5 mm | Neck Diameter (DN) | 2.9 mm |
| Overall Length (OAL) | 38 mm | Grade | AH3005 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round |
Product Features
| Family Description | 2 flute ball nose endmill, 30 deg helix angle, long neck Type,for hardened steel | Country of Origin | S.Korea |
