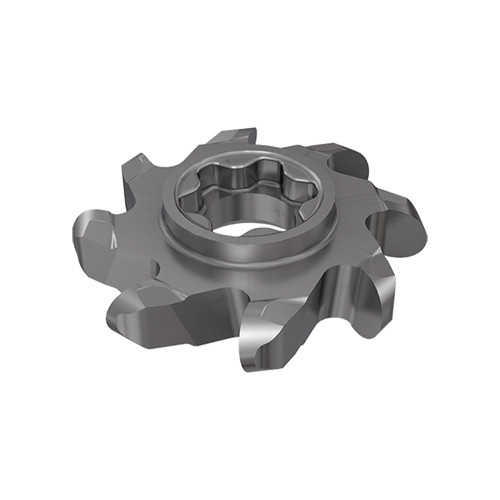

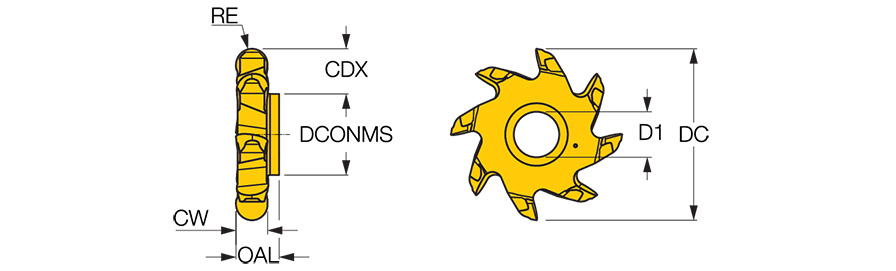

SD D32-03-R1.5-SP15 IC908
End Mill Head; 31.7 mm Dia. × 8 mm Max Depth × 15 mm Shank Dia. × 8 mm OAL ; Carbide ; TiAlN ; IC908
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 31.7 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 8.4 mm |
| Corner Radius (RE) | 1.5 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 3 mm | Tool Type | Solid "T" slot cutters |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Body Material | Carbide |
| Overall Length (OAL) | 8 mm |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads, with full radius. | Country of Origin | Israel |
| Remarks | For machining recommendations, click on More Info |
Shipping Info
Package Weight
36
