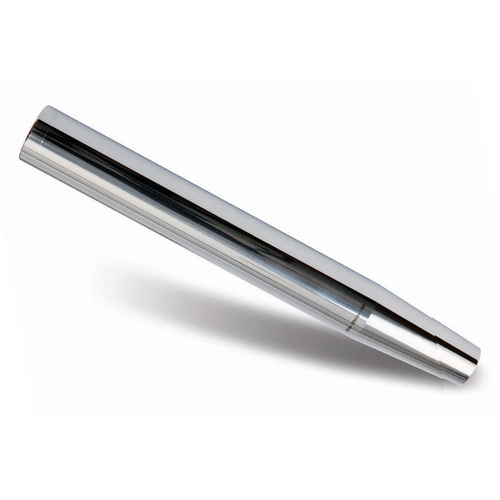

‎ST1 1/4 0.625″x 6.3″ SHRINK FIT EXTENSION/Straight Shank/THROUGH COOLANT [ST1-1/4-SFH5/8-6.30]

Item # YG53VS056

Brand: YG-1 Cutting Tools

MFG #: VS056

Legacy Part #: YG53VS056

Connection Diameter Machine Side (DCONMS)

‎ST1-1/4

Overall Length (OAL)

6.3″

Connection Diameter Workpiece Side (DCONWS)

5/8″

Thread Designation Inside (THID)

M12 × 1.0

Shank Size (SS)

‎ST1-1/4

Clamping Length Workpiece Side (LSCWS)

2.0079″

Body Length (LB)

6.3″

Measurement Type

Inch

Body Length_2 (LB_2)

1.929″

Tool Type

SHRINK FIT EXTENSION/Straight Shank/THROUGH COOLANT

Body Diameter (BD)

‎1-1/4″

Model Number

‎ST1-1/4-SFH5/8-6.30

Body Taper End Diameter (BTED)

1.063″

Product Features

Remarks

Straight shank adapter can be held in hydraulic chucks, milling chucks, shrinkfit, collets and can also be adapted to lathe work
Used for rough milling, milling, finish milling, drilling, reaming, chamfering, and threadmilling

Country of Origin

S.Korea

Package Length

6.89

Package Width

1.77

Package Height

1.77

Package Weight

1.8
