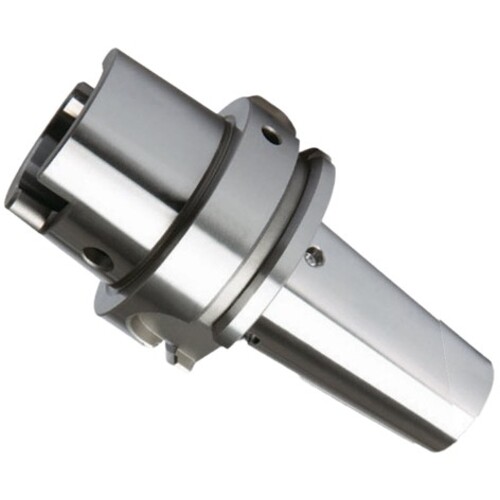

![HSK100A 0.125″x 3.15″ DUAL CONTACT SHRINK FIT HOLDER/Short Projection [HSK100A-SFH1/8-3.15]](/images/Fittings/hq-new/System_Images/YG1/Prod_Pic/YG1VR020/YG1VR020_Enlarge.jpg)
HSK100A 0.125″x 3.15″ DUAL CONTACT SHRINK FIT HOLDER/Short Projection [HSK100A-SFH1/8-3.15]
| Connection Diameter Machine Side (DCONMS) | HSK100A | Protruding Length (LPR) | 3.15″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/8″ | Overall Length (OAL) | 5.1181″ |
| Shank Size (SS) | HSK100A | Shank Type | HSK-A |
| Body Length (LB) | 3.15″ | Coolant Supply Property (CSP) | Coolant Thru |
| Body Length_2 (LB_2) | 1.6142″ | Clamping Length Workpiece Side (LSCWS) | 0.3543″ |
| Body Diameter (BD) | 0.648″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 1.5748″ | Tool Type | DUAL CONTACT SHRINK FIT HOLDER/Short Projection |
| Body Taper End Diameter (BTED) | 0.3937″ | Model Number | HSK100A-SFH1/8-3.15 |
Product Features
| Remarks |
|
Country of Origin | S.Korea |
Shipping Info
Package Length
5.71
Package Width
4.53
Package Height
4.53
Package Weight
5.05
