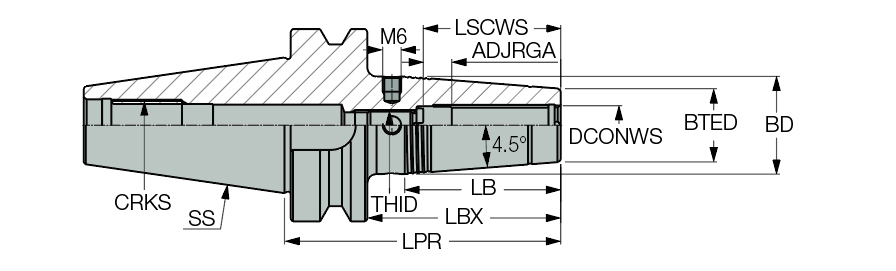

| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Clamping Length Workpiece Side (LSCWS) | 39.8 mm |
| Shank Size (SS) | 40 | Series/List # | SHRINK |
| Body Length (LB) | 50.8 mm | Measurement Type | Metric |
| Body Diameter (BD) | 32 mm | Tool Type | BT |
| Body Taper End Diameter (BTED) | 24 mm | Body Material | Steel |
| Protruding Length (LPR) | 90 mm | Connection Code Machine Side (CCMS) | BT |
| Body Length Maximum (LBX) | 63 mm |
Product Features

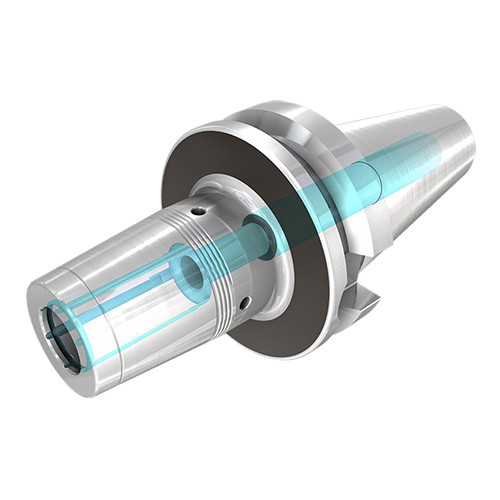

| Family Description | Thermal shrink chucks with BT MAS-403 Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET channels - do not remove |
Shipping Info
Package Weight
2.886
