CAT40 SRK 3/8 X3.250
Shrink Fit Holder ; 3/8″ Hole Dia. ; 40″ Shank Dia. ; 7.317″ OAL ; 0.965″ Body Dia. ; Series SHRINK

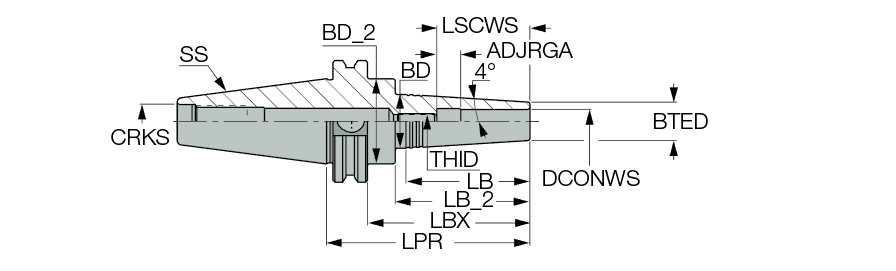

| Connection Diameter Machine Side (DCONMS) | 40″ | Body Length Maximum (LBX) | 3.88″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Overall Length (OAL) | 7.317″ |
| Shank Size (SS) | 40 | Shank Standard | CAT |
| Body Length (LB) | 2.393″ | Clamping Length Workpiece Side (LSCWS) | 1.673″ |
| Body Length_2 (LB_2) | 3-1/4″ | Series/List # | SHRINK |
| Body Diameter (BD) | 0.965″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 1.752″ | Tool Type | DIN 69871 |
| Body Taper End Diameter (BTED) | 0.63″ | Body Material | Steel |
| Protruding Length (LPR) | 4.63″ | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | Thermal shrink chucks with Caterpillar tapered shanks, for carbide tools only. | Country of Origin | Israel |
| Remarks | For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
2.656
