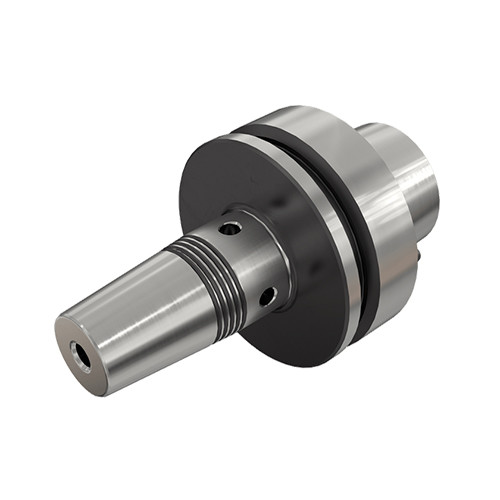

HSK FM80 SRKIN1/4X3.25
Shrink Fit Holder ; 1/4″ Hole Dia. ; 3.15″ Shank Dia. ; 4.512″ OAL ; Series SHRINK

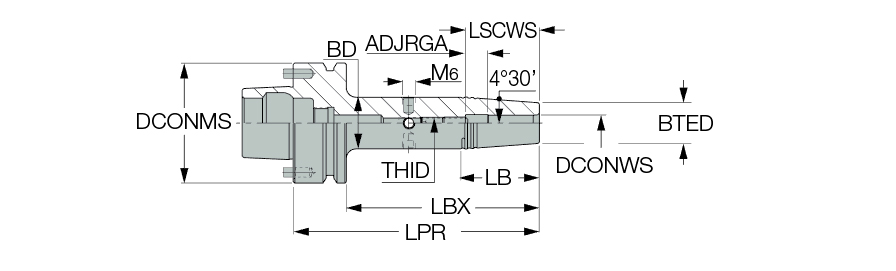

| Connection Diameter Machine Side (DCONMS) | 3.15″ | Overall Length (OAL) | 4.512″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Shank Standard | HSK FM |
| Shank Size (SS) | 80 | Clamping Length Workpiece Side (LSCWS) | 1.42″ |
| Body Length (LB) | 1-1/2″ | Series/List # | SHRINK |
| Body Diameter (BD) | 1.063″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.827″ | Tool Type | HSK |
| Protruding Length (LPR) | 3-1/4″ | Body Material | Steel |
| Body Length Maximum (LBX) | 2.226″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | Thermal shrink chucks with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) For solid carbide, HSS and steel tools Use only inductive heating device for SRKIN holders The orientation pins can be removed, turning the toolholder into a standard HSK F 63 type |
Shipping Info
Package Weight
2.983
