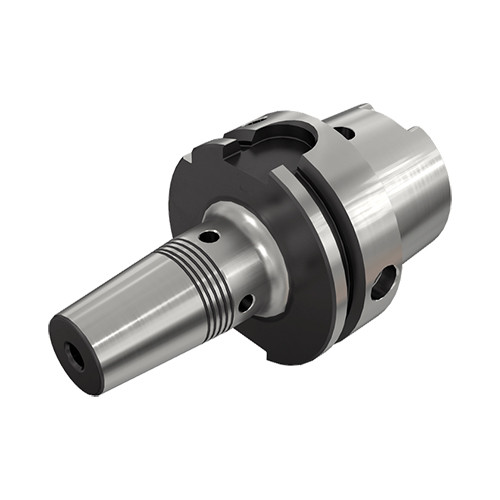

HSK A63 SRKIN5/16X3.150
Shrink Fit Holder ; 0.313″ Hole Dia. ; 2.48″ Shank Dia. ; 4.41″ OAL ; 0.827″ Body Dia. ; Series SHRINK

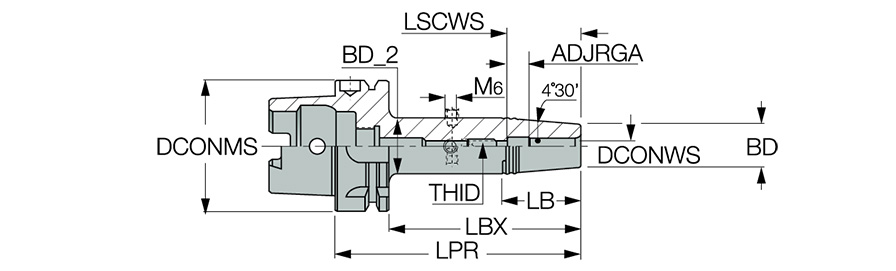

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Overall Length (OAL) | 4.41″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.313″ | Shank Standard | HSK A |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 1.42″ |
| Body Length (LB) | 1-1/2″ | Series/List # | SHRINK |
| Body Diameter (BD) | 0.827″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 1.06″ | Tool Type | HSK |
| Protruding Length (LPR) | 3.15″ | Body Material | Steel |
| Body Length Maximum (LBX) | 2.217″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm |
Shipping Info
Package Weight
1.947
