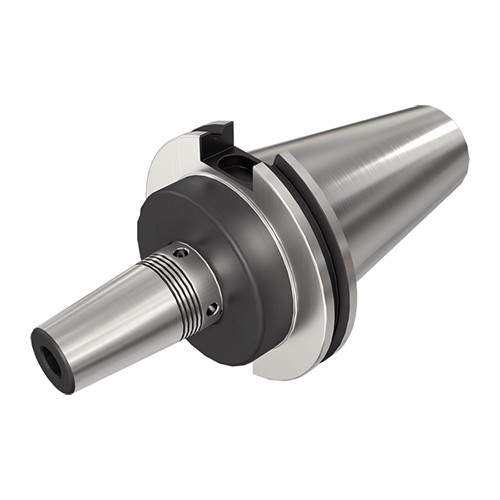

CAT50 SRKIN 1-1/4 X4.000
Shrink Fit Holder ; 1-1/4″ Hole Dia. ; 50″ Shank Dia. ; 8″ OAL ; Series SHRINK

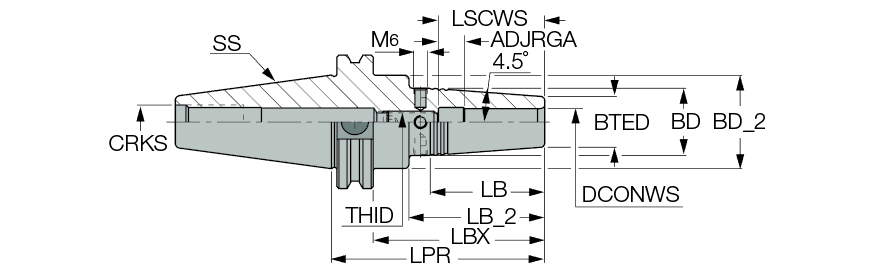

| Connection Diameter Machine Side (DCONMS) | 50″ | Body Length Maximum (LBX) | 3-1/4″ |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Overall Length (OAL) | 8″ |
| Shank Size (SS) | 50 | Shank Standard | CAT |
| Body Length (LB) | 2.251″ | Clamping Length Workpiece Side (LSCWS) | 2.28″ |
| Body Length_2 (LB_2) | 2.62″ | Series/List # | SHRINK |
| Body Diameter (BD) | 2.087″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 2.752″ | Tool Type | DIN 69871 |
| Body Taper End Diameter (BTED) | 1.732″ | Body Material | Steel |
| Protruding Length (LPR) | 4″ | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | SHRINKIN thermal chucks with integral Caterpillar tapered shanks, for solid carbide HSS and steel tools with h6 tolerance. | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders |
Shipping Info
Package Weight
8.175
