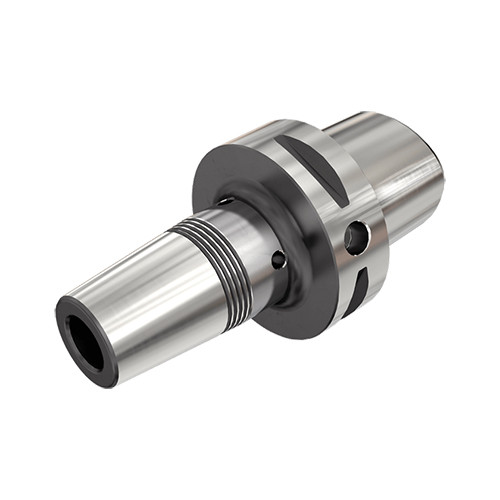

C6 SRKIN 3/8X3.150
Shrink Fit Holder ; 3/8″ Hole Dia. ; 2.48″ Shank Dia. ; 4.646″ OAL ; 1.26″ Body Dia. ; Series SHRINK

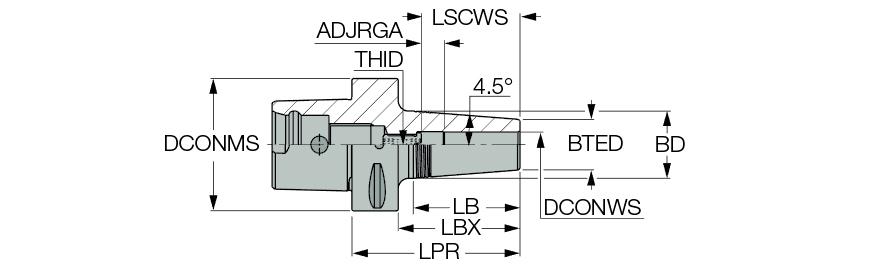

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Overall Length (OAL) | 4.646″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Shank Standard | CAMFIX |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 1.65″ |
| Body Length (LB) | 2″ | Series/List # | SHRINK |
| Body Diameter (BD) | 1.26″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.945″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Protruding Length (LPR) | 3.15″ | Body Material | Steel |
| Body Length Maximum (LBX) | 2.284″ |
Product Features
| Family Description | Thermal shrink chucks with integral CAMFIX (ISO26623-1 standard) tapered shanks, for solid carbide, HSS and steel tools with h6 tolerance. | Country of Origin | Israel |
| Remarks | The adjustment screw has an internal coolant hole Use only inductive heating device for SRKIN holders For shrink units information, Click on More Info |
Shipping Info
Package Weight
2.399
