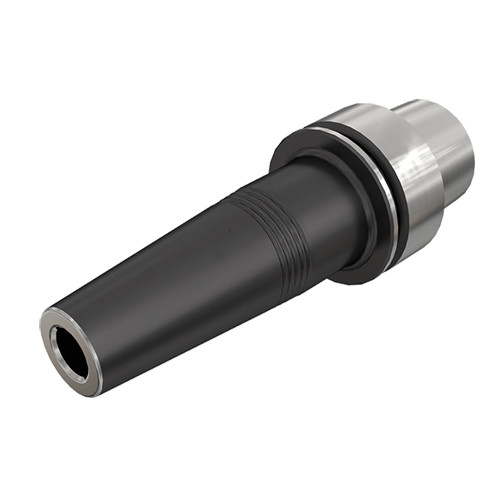

HSK E32 SRK3/8X2.000
Shrink Fit Holder ; 3/8″ Hole Dia. ; 1.26″ Shank Dia. ; 3.417″ OAL ; 0.866″ Body Dia. ; Series SHRINK

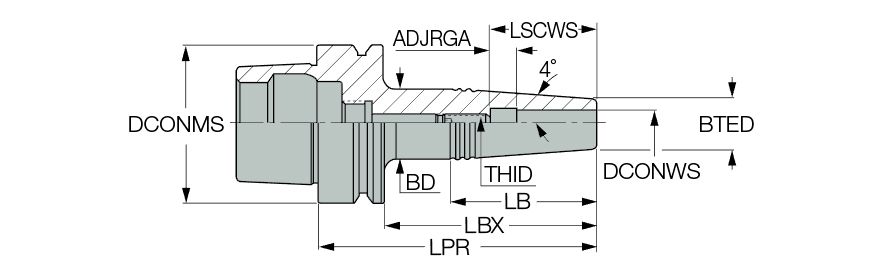

| Connection Diameter Machine Side (DCONMS) | 1.26″ | Overall Length (OAL) | 3.417″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Shank Standard | HSK E |
| Shank Size (SS) | 32 | Clamping Length Workpiece Side (LSCWS) | 1.58″ |
| Body Length (LB) | 1.677″ | Series/List # | SHRINK |
| Body Diameter (BD) | 0.866″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.63″ | Tool Type | HSK |
| Protruding Length (LPR) | 2.787″ | Body Material | Steel |
| Body Length Maximum (LBX) | 2″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, click on More Info. |
Shipping Info
Package Weight
1.565
