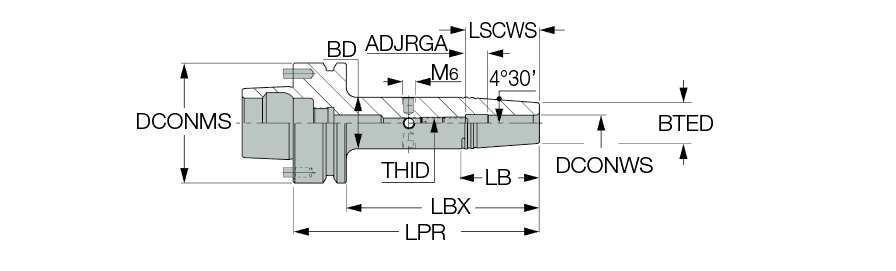

HSK FM63 SRKIN8X80
| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Standard | HSK FM |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Application | | HSK | |
| Shank Size (SS) | 63 | Usable Length (LU) | 54 mm |
| Body Length (LB) | 38 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 25 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Thermal shrink chucks with HSK FM shanks, for MAKINO's machine models MAG. These HSK shanks feature two orientation pins for high speed machining of aluminum. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For solid carbide, HSS and steel tools Use only inductive heating device for SRKIN holders The anti slip pins can be removed, turning the toolholder into a standard HSK F 63 type ISCAR can guarantee an unbalance value of no more than 1 gr x mm |
Shipping Info
Package Weight
1.944
