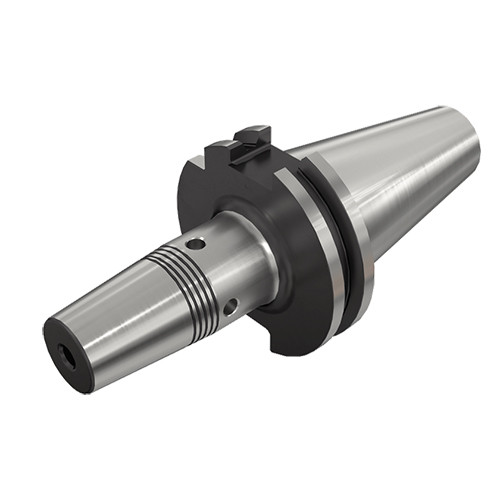

DIN69871 40 SRKIN 8X80
Shrink Fit Holder ; 8 mm Hole Dia. ; 40 mm Shank Dia. ; 148.4 mm OAL ; Series SHRINK

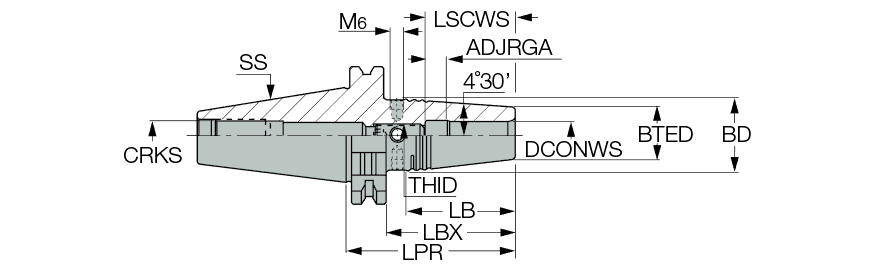

| Connection Diameter Machine Side (DCONMS) | 40 mm | Overall Length (OAL) | 148.4 mm |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Shank Standard | DIN69871 |
| Shank Size (SS) | 40 | Clamping Length Workpiece Side (LSCWS) | 36 mm |
| Body Length (LB) | 38 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 27 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 21 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 60.9 mm | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance. | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info |
Shipping Info
Package Weight
2.368
