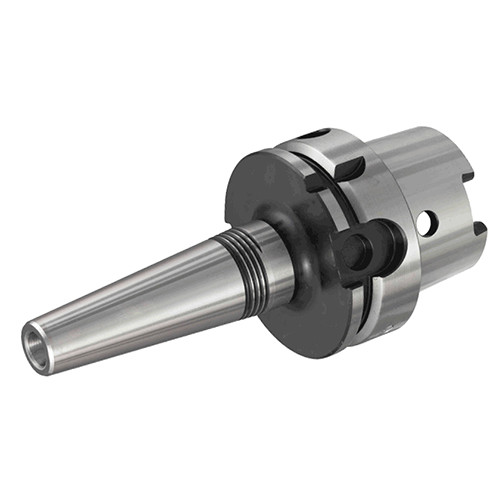

HSK A63 SRK 6X85
Shrink Fit Holder ; 6 mm Hole Dia. ; 63 mm Shank Dia. ; 143 mm OAL ; Series SHRINK

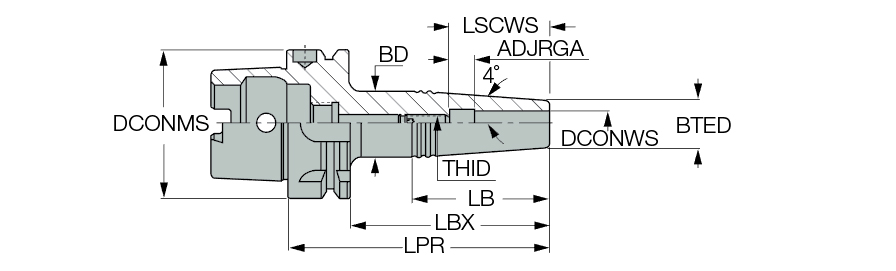

| Connection Diameter Machine Side (DCONMS) | 63 mm | Overall Length (OAL) | 143 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Shank Standard | HSK A |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 24 mm |
| Body Length (LB) | 79 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 22 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 11 mm | Tool Type | HSK |
| Protruding Length (LPR) | 111 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 85 mm | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | Country of Origin | India |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. Remove preset screw for coolant through. |
Shipping Info
Package Weight
1.865
