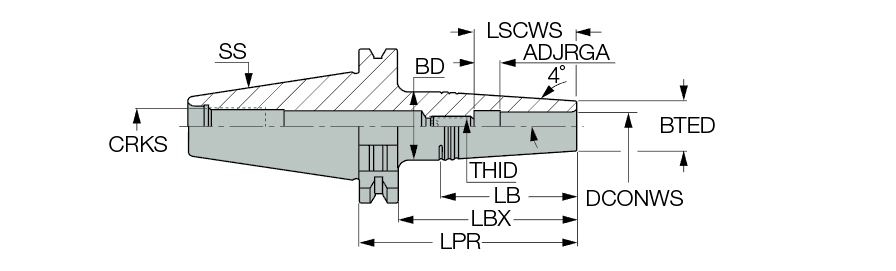

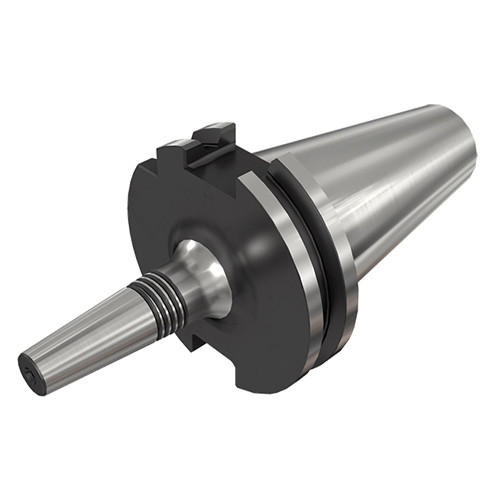

DIN69871 40 SRK 6X50
Shrink Fit Holder ; 6 mm Hole Dia. ; 40 mm Shank Dia. ; 137.5 mm OAL ; Series SHRINK
| Connection Diameter Machine Side (DCONMS) | 40 mm | Overall Length (OAL) | 137.5 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Shank Standard | DIN69871 |
| Shank Size (SS) | 40 | Clamping Length Workpiece Side (LSCWS) | 36.5 mm |
| Body Length (LB) | 35.8 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 16 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 11 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 69.1 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 50 mm | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | SHRINKIN thermal shrinking chucks with DIN 69871 form AD taper shanks. | Country of Origin | India |
| Remarks | To be used for carbide tools only. For shrink units information, Click on More Info. Preset screw without coolant hole. For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
2.050
