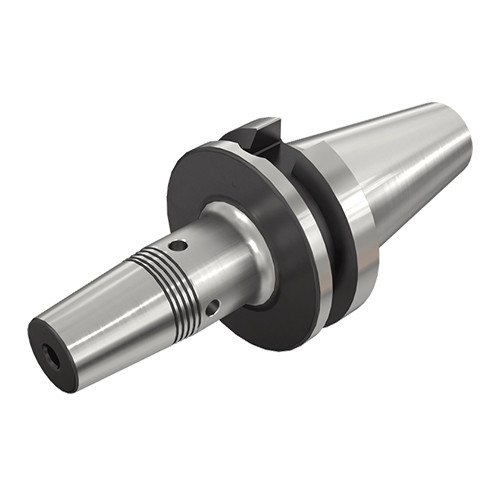

BT50 SRKIN 32X120
Shrink Fit Holder ; 32 mm Hole Dia. ; 50 mm Shank Dia. ; 221.8 mm OAL ; Series SHRINK

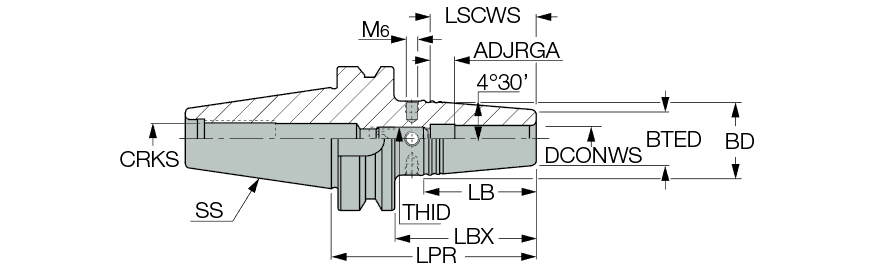

| Connection Diameter Machine Side (DCONMS) | 50 mm | Overall Length (OAL) | 221.8 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Shank Standard | BT |
| Shank Size (SS) | 50 | Clamping Length Workpiece Side (LSCWS) | 58 mm |
| Body Length (LB) | 57 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 53 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 44 mm | Tool Type | BT |
| Protruding Length (LPR) | 120 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 82 mm | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | Thermal shrink chucks with BT MAS 403 form AD taper shanks for carbide HSS and steel tools. | Country of Origin | India |
| Remarks | Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm |
Shipping Info
Package Weight
9.930
