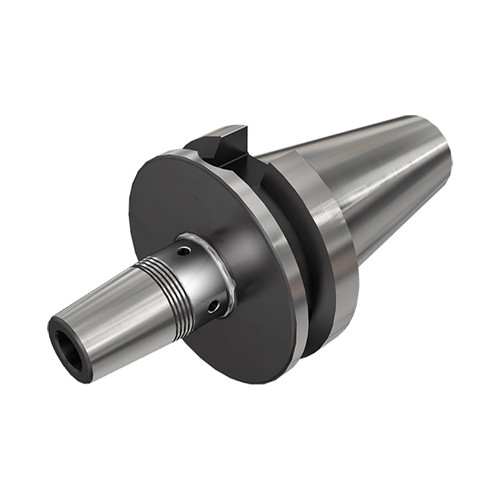

BT40 FC SRKIN10X90
Shrink Fit Holder ; 10 mm Hole Dia. ; 40 mm Shank Dia. ; 156.4 mm OAL ; Series SHRINK

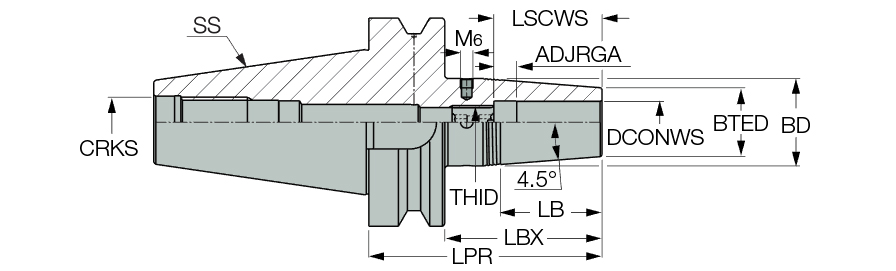

| Connection Diameter Machine Side (DCONMS) | 40 mm | Overall Length (OAL) | 156.4 mm |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Clamping Length Workpiece Side (LSCWS) | 42 mm |
| Shank Size (SS) | 40 | Series/List # | SHRINK |
| Body Length (LB) | 50.8 mm | Measurement Type | Metric |
| Body Diameter (BD) | 32 mm | Tool Type | BT |
| Body Taper End Diameter (BTED) | 24 mm | Body Material | Steel |
| Protruding Length (LPR) | 90 mm | Connection Code Machine Side (CCMS) | BT |
| Body Length Maximum (LBX) | 64 mm |
Product Features
| Family Description | Thermal shrink chucks with BT MAS-403 face contact AD tapered shanks, for solid carbide HSS and steel tools. | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders For adaptation details, click on More Info |
Shipping Info
Package Weight
2.923
