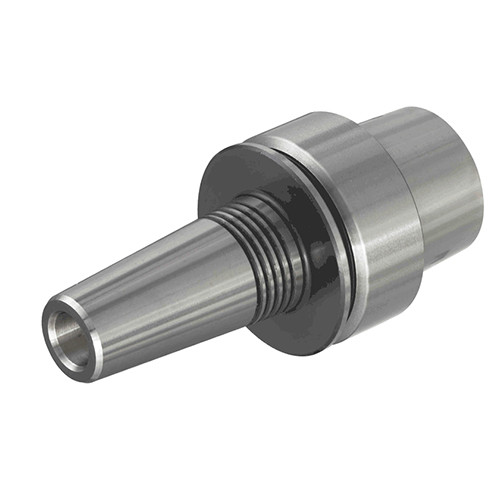

HSK E50 SRK10X45
Shrink Fit Holder ; 10 mm Hole Dia. ; 50 mm Shank Dia. ; 96 mm OAL ; Series SHRINK

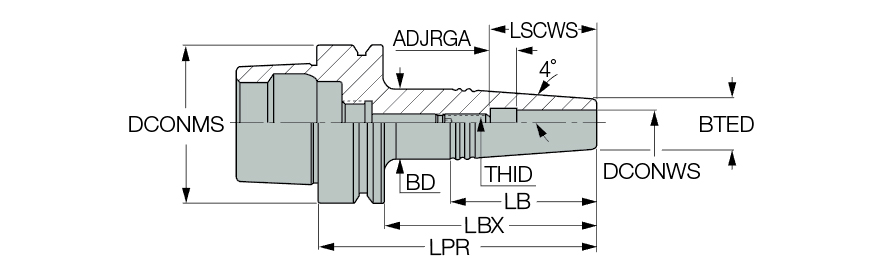

| Connection Diameter Machine Side (DCONMS) | 50 mm | Overall Length (OAL) | 96 mm |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Shank Standard | HSK A |
| Shank Size (SS) | 50 | Clamping Length Workpiece Side (LSCWS) | 40 mm |
| Body Length (LB) | 42 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 22 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 16 mm | Tool Type | HSK |
| Protruding Length (LPR) | 71 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 45 mm | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
1.199
