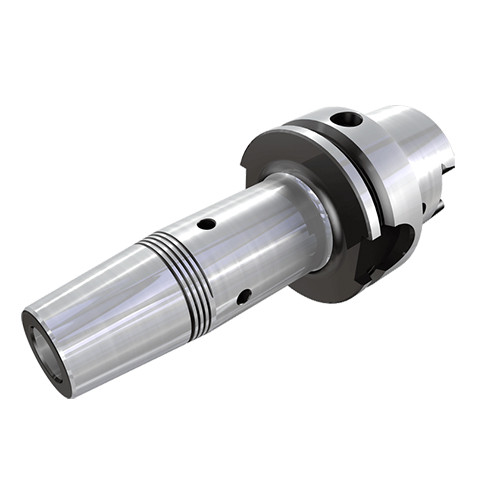

HSK A100 SRKIN6X160
Shrink Fit Holder ; 6 mm Hole Dia. ; 100 mm Shank Dia. ; 210 mm OAL ; 21 mm Body Dia. ; Series SHRINK

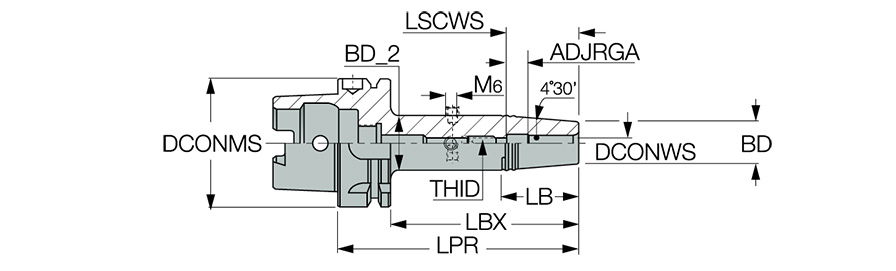

| Connection Diameter Machine Side (DCONMS) | 100 mm | Overall Length (OAL) | 210 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Shank Standard | HSK A |
| Shank Size (SS) | 100 | Clamping Length Workpiece Side (LSCWS) | 36.5 mm |
| Body Length (LB) | 38 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 21 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 27 mm | Tool Type | HSK |
| Protruding Length (LPR) | 160 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 131 mm | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | Country of Origin | India |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm |
Shipping Info
Package Weight
5.979
