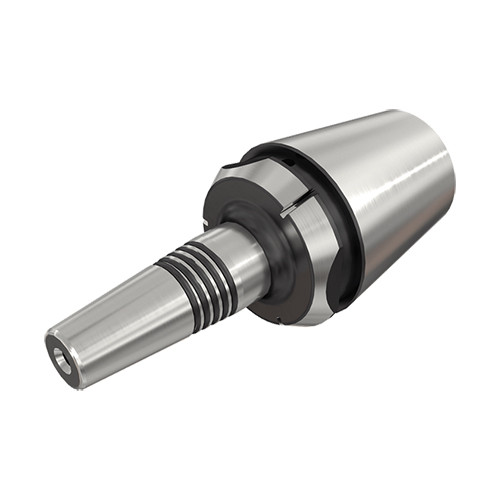

ER32 SRK 1/4X2.500 JET2
Shrink Fit Holder ; 1/4″ Hole Dia. ; 4.075″ OAL ; 0.7″ Body Dia. ; Series SHRINK
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Overall Length (OAL) | 4.075″ |
| Shank Size (SS) | ER32 | Clamping Length Workpiece Side (LSCWS) | 0.95″ |
| Body Length (LB) | 1.91″ | Series/List # | SHRINK |
| Body Diameter (BD) | 0.7″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.433″ | Tool Type | Accessories and Devices |
| Body Length Maximum (LBX) | 2-1/2″ | Body Material | Steel |
Product Features
| Family Description | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
0.483
