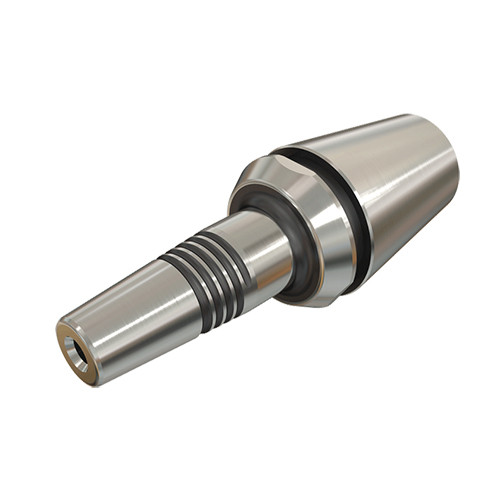

ER20 SRK 3/16X1.500
Shrink Fit Holder ; 0.187″ Hole Dia. ; 20″ Shank Dia. ; 2.72″ OAL ; 0.53″ Body Dia. ; Series SHRINK

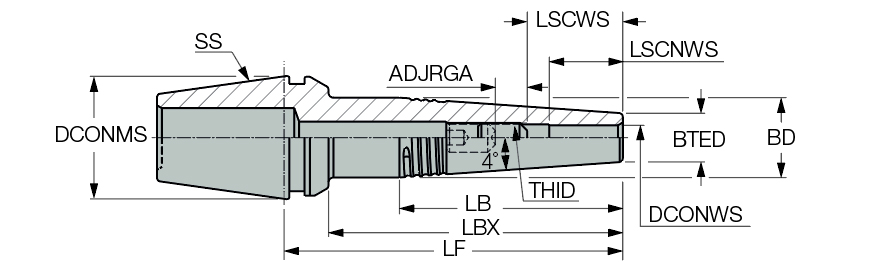

| Connection Diameter Machine Side (DCONMS) | 20″ | Overall Length (OAL) | 2.72″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.187″ | Clamping Length Workpiece Side (LSCWS) | 0.83″ |
| Shank Size (SS) | ER20 | Series/List # | SHRINK |
| Body Length (LB) | 0.97″ | Measurement Type | Inch |
| Body Diameter (BD) | 0.53″ | Tool Type | Accessories and Devices |
| Body Taper End Diameter (BTED) | 0.394″ | Body Material | Steel |
| Body Length Maximum (LBX) | 1-1/2″ |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet, for solidcarbide tools only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
0.198
