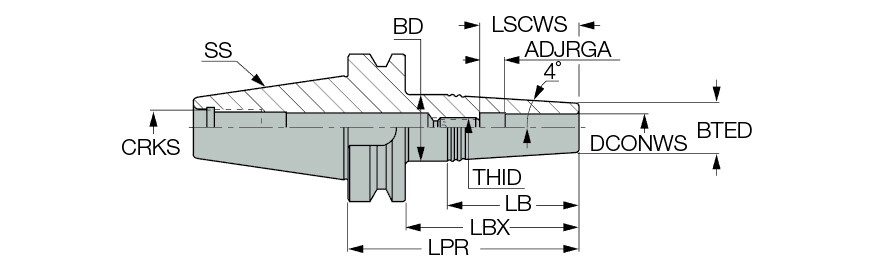

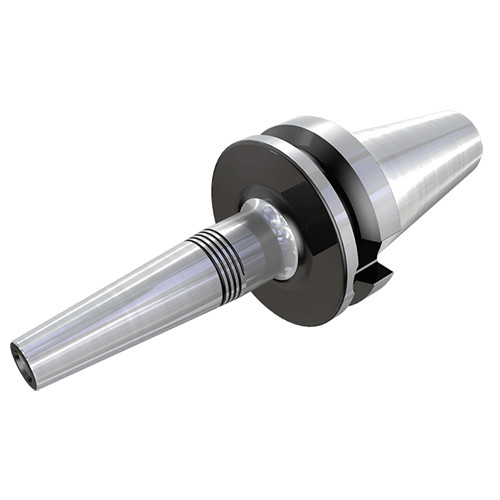

BT30 FC SRK 8X50
| Connection Diameter Machine Side (DCONMS) | 30 mm | Body Length Maximum (LBX) | 50 mm |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Clamping Length Workpiece Side (LSCWS) | 25 mm |
| Shank Size (SS) | 30 | Series/List # | SHRINK |
| Body Length (LB) | 43.3 mm | Measurement Type | Metric |
| Body Diameter (BD) | 20 mm | Tool Type | BT |
| Body Taper End Diameter (BTED) | 13.95 mm | Body Material | Steel |
| Protruding Length (LPR) | 72 mm | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | Thermal shrink chucks with BT MAS-403 face contact AD tapered shanks, for solid carbide tools. | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders For adaptation details, click on More Info For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
1.135
