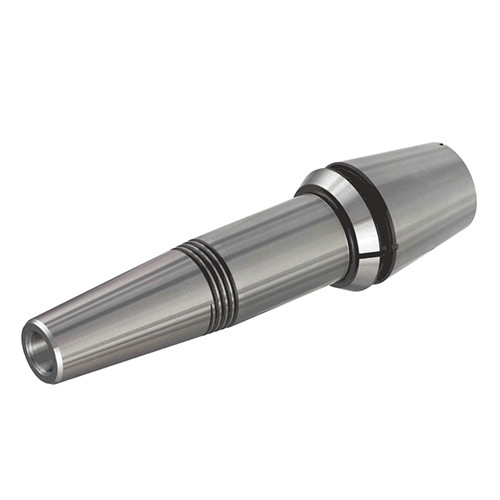

ER25 SRK 3X60 JET2
Shrink Fit Holder ; 3 mm Hole Dia. ; 25 mm Shank Dia. ; 95 mm OAL ; Series SHRINK

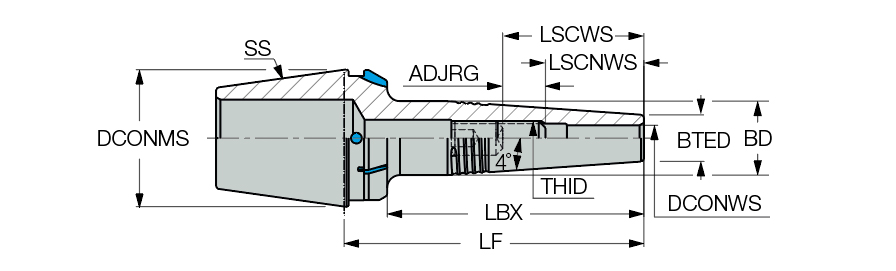

| Connection Diameter Machine Side (DCONMS) | 25 mm | Overall Length (OAL) | 95 mm |
| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Clamping Length Workpiece Side (LSCWS) | 16 mm |
| Shank Size (SS) | ER25 | Series/List # | SHRINK |
| Body Length (LB) | 44.5 mm | Measurement Type | Metric |
| Body Diameter (BD) | 16.3 mm | Tool Type | Spring Collets |
| Body Taper End Diameter (BTED) | 10 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 60 mm |
Product Features
| Family Description | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
0.333
