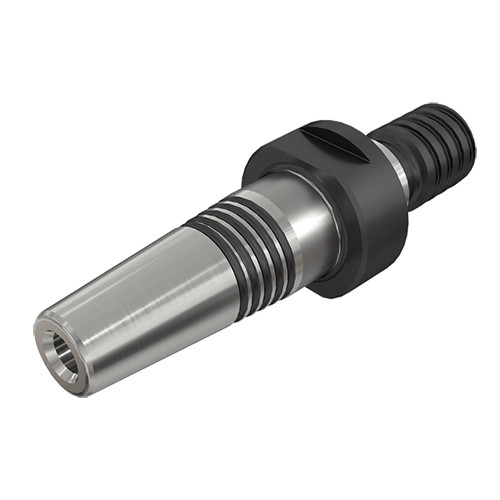

CDP M12 SRK 4X45
Shrink Fit Holder ; 4 mm Hole Dia. ; 67 mm OAL ; Series SHRINK

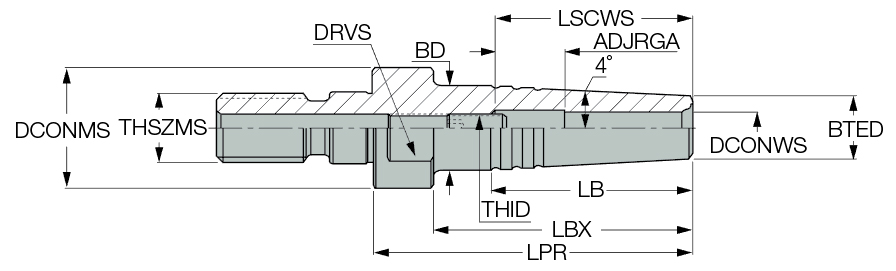

| Connection Diameter Machine Side (DCONMS) | 21 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Clamping Length Workpiece Side (LSCWS) | 18 mm |
| Body Length (LB) | 28.8 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 14 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 10 mm | Drive Size (DRVS) | 17 mm |
| Protruding Length (LPR) | 45 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Body Length Maximum (LBX) | 36.5 mm | Tool Type | Unique Adapter Milling System |
| Overall Length (OAL) | 67 mm | Body Material | Steel |
| Shank Standard | FLEXFIT |
Product Features
| Family Description | Thermal shrink chucks with FLEXFIT adaptation for clamping solid carbide endmills | Country of Origin | Israel |
| Remarks | To be used for carbide tools only. For Adaptation Click on More Info. When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.179
