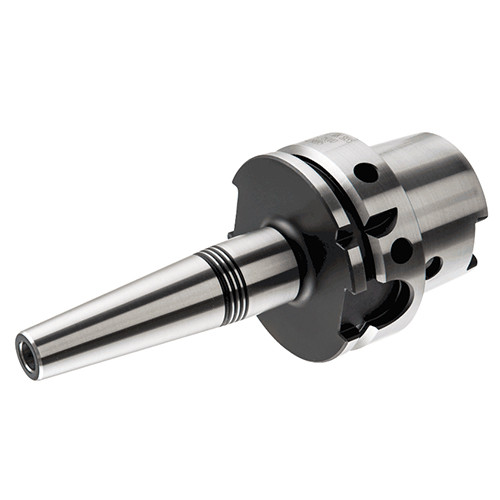

HSK A63 SRK 7/16X2.000
Shrink Fit Holder ; 0.437″ Hole Dia. ; 2.48″ Shank Dia. ; 4.284″ OAL ; 1.067″ Body Dia. ; Series SHRINK

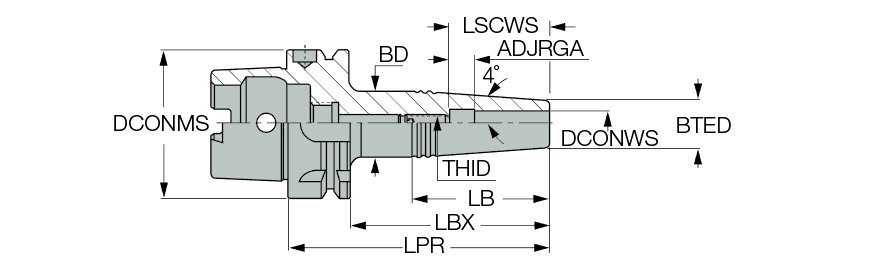

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Overall Length (OAL) | 4.284″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.437″ | Shank Standard | HSK A |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 1.65″ |
| Body Length (LB) | 2″ | Series/List # | SHRINK |
| Body Diameter (BD) | 1.067″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.79″ | Tool Type | HSK |
| Protruding Length (LPR) | 3.024″ | Body Material | Steel |
| Body Length Maximum (LBX) | 2″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chucking collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). Remove preset screw for coolant through. For shank dimensions, click on More Info. |
Shipping Info
Package Weight
1.838
