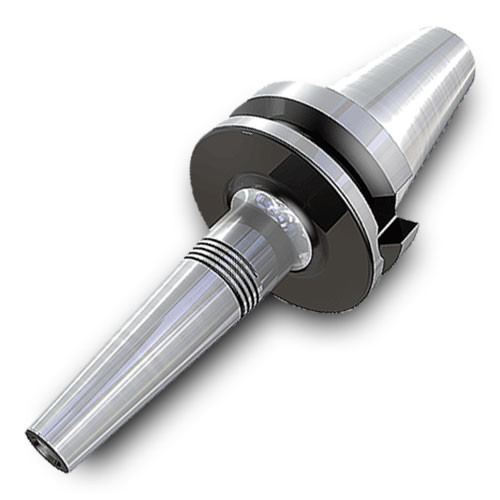

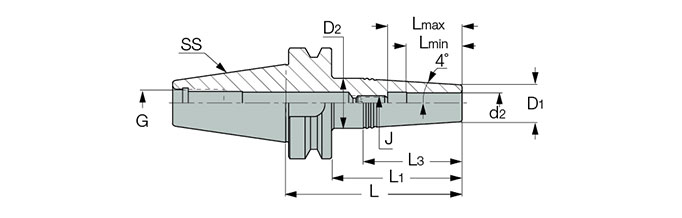

BT40SRKIN5/16X6.300C
Shrink Fit Holder ; 0.313″ Hole Dia. ; 150 mm OAL ; 1.06″ Body Dia. ; Series SHRINK
| Connection Diameter Workpiece Side (DCONWS) | 0.313″ | Clamping Length Workpiece Side (LSCWS) | 1.45″ |
| Shank Size (SS) | BT40 | Nose Diameter | 0.83″ |
| Body Length (LB) | 3.15″ | Usable Length (LU) | 6.3″ |
| Body Diameter (BD) | 1.06″ | Series/List # | SHRINK |
| Body Taper End Diameter (BTED) | 0.83″ | Measurement Type | Inch |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Thread Designation Inside (THID) | M6 |
Product Features
| Family Description | -C Indicates coolant ports in nose BT40 balanced G2.5@25,000RPM | Country of Origin | Usa |
Shipping Info
Package Weight
0.000
