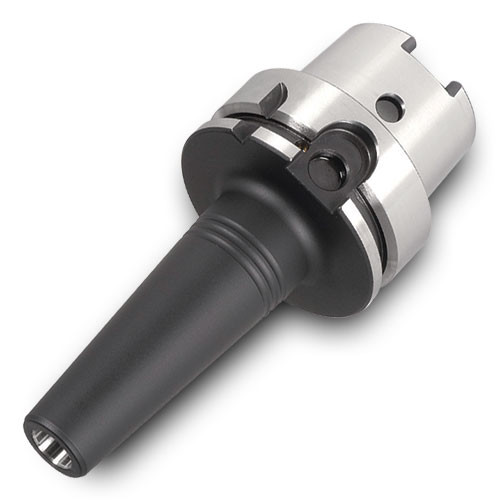

HSKA63SRK7/16X3.250
Shrink Fit Holder ; 0.438″ Hole Dia. ; 150 mm OAL ; 1.181″ Body Dia. ; Series SHRINK
| Connection Diameter Workpiece Side (DCONWS) | 0.438″ | Thread Designation Inside (THID) | M10 |
| Shank Size (SS) | HSK-A 63 | Clamping Length Workpiece Side (LSCWS) | 1.65″ |
| Body Length (LB) | 2.815″ | Nose Diameter | 0.79″ |
| Body Diameter (BD) | 1.181″ | Usable Length (LU) | 4.274″ |
| Body Taper End Diameter (BTED) | 0.79″ | Series/List # | SHRINK |
| Body Length Maximum (LBX) | 3-1/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
1.764
