Q6-DMXNN 2525M-12-SL-JHP

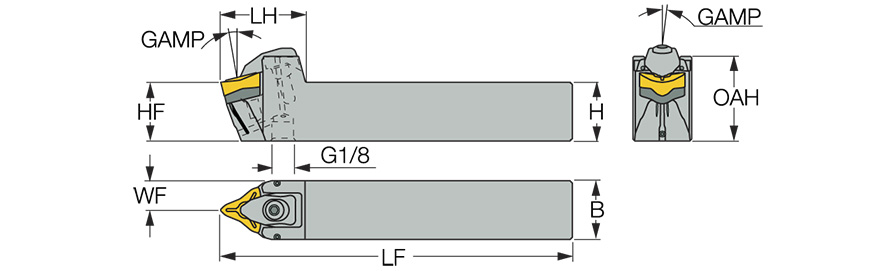

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | Q6-MNMG1206#-M3#-SL |
| Shank Width (B) | 25 mm | Application | | High Feed and Diverse Turning Direction Applicatio | |
| Functional Length (LF) | 150 mm | Rake Angle Axial (GAMP) | 11 Degrees |
| Head Length (LH) | 37 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 12.5 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 11.05 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
Product Features

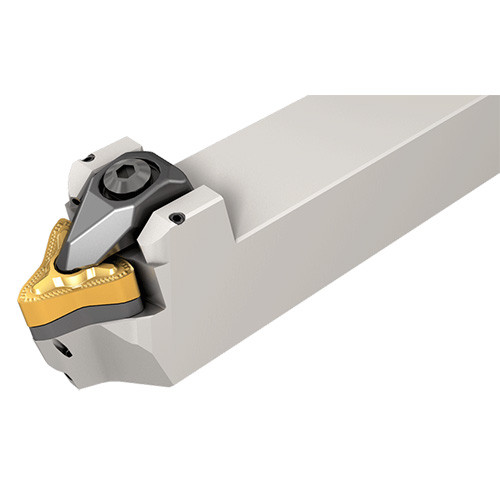

| Family Description | Safety lock tools with high feed negative inserts for roughing applications. Three grooves in the pocket and a matching ridge at the insert bottom ensure secure and highly stable machining at very high feed rates. | Country of Origin | Israel |
Shipping Info
Package Weight
753
