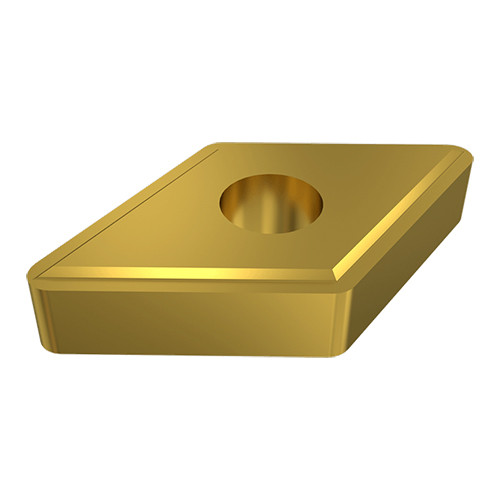

DNGG 433 Z0430AG IN16C
| Applicable Material | | Hard Materials | | Grade | IN16C |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | DNGG | Min D.O.C. | 0.012″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Size | 433 | Min. Turning Feed (ft(min)) | 0.00236 ″/rev |
| Cutting Edge Length (L) | 0.61″ | Max. Turning Feed (ft(max)) | 0.01299 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
Product Features
| Family Description | Negative 55° rhombic double-sided ceramic inserts with a chipbreaker for machining hardened steel and cast iron | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
8.5
