TPFN MF-10X1.25-F HETI
Forming Tap; MF10 × 1.25 mm ; 3.937″ OAL × 0.276″ Shank Dia. ; HSS ; TiN

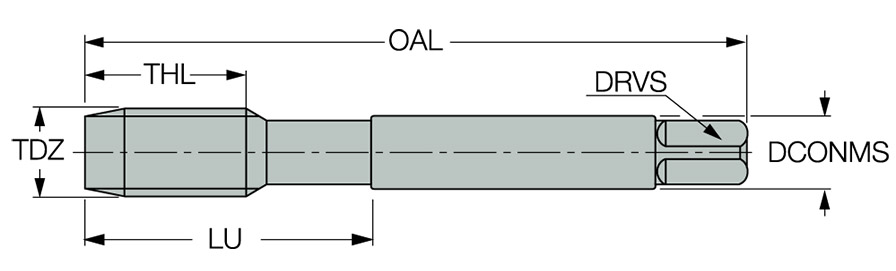

| Tool Type | Machine Blind Hole Taps | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | MF10 | Coating | TiN |
| Thread Pitch (TP) | 1.25 mm | Measurement Type | Inch |
| Overall Length (OAL) | 3.937″ | Cutting Edge Material | HSS |
| Thread Cutting Part Length (THL) | 0.709″ | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Thread Size | F10 × 1.25 |
| Flute Count (NOF) | 5 | Body Material | HSS |
| Tap Standard | DIN 374 |
Product Features
| Family Description | HSSE 5% Co Cold Forming Machine Taps - ISO Metric Fine Threads, According to DIN 13 | Country of Origin | Hungary |
Shipping Info
Package Weight
38
