TPSTN M-8X1.25-G PMNI
Straight Flute Tap; M8 × 1.25 mm ; 3.543″ OAL ; 4 FL ; Nitration

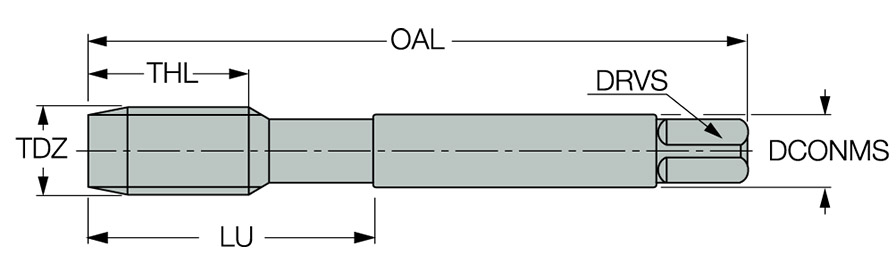

| Thread Diameter Size (TDZ) | M8 | Standard | DIN 371 |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Machine Blind Hole Taps |
| Overall Length (OAL) | 3.543″ | Coating | Nitration |
| Thread Cutting Part Length (THL) | 0.709″ | Drive Size (DRVS) | 0.244″ |
| Usable Length (LU) | 1.38″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Grade | PMNI |
| Flute Count (NOF) | 4 | Thread Size | 8 × 1.25 |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Body Material | HSS |
Product Features
| Family Description | PM Straight Flute Machine Taps - ISO Metric Coarse Threads, According to DIN 13, for Gray Cast Iron | Country of Origin | Hungary |
Shipping Info
Package Weight
31
