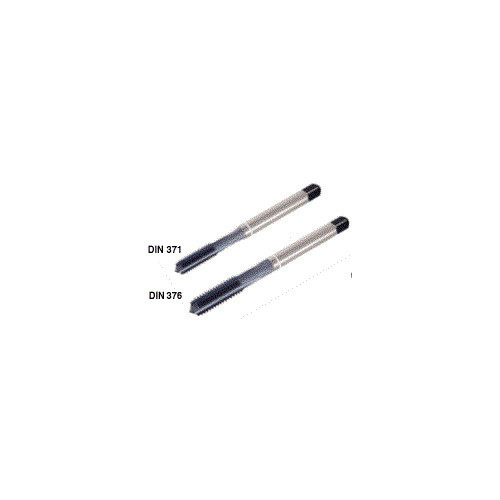

TPSTN M-5X0.8-G-E PMTA
Straight Flute Tap; M5 × 0.8 mm ; 2.756″ OAL ; 4 FL

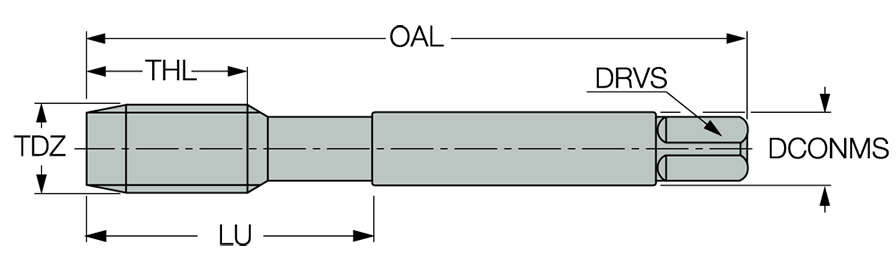

| Thread Diameter Size (TDZ) | M5 | Standard | DIN 371 |
| Thread Pitch (TP) | 0.8 mm | Tool Type | Machine Blind Hole Taps |
| Overall Length (OAL) | 2.756″ | Drive Size (DRVS) | 0.193″ |
| Thread Cutting Part Length (THL) | 0.551″ | Measurement Type | Inch |
| Usable Length (LU) | 0.98″ | Grade | PMTA |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Thread Size | 5 × 0.8 |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
Product Features
| Family Description | PM Straight Flute Machine Taps - ISO Metric Coarse Threads, According to DIN 13, for Gray Cast Iron | Country of Origin | Hungary |
Shipping Info
Package Weight
12
