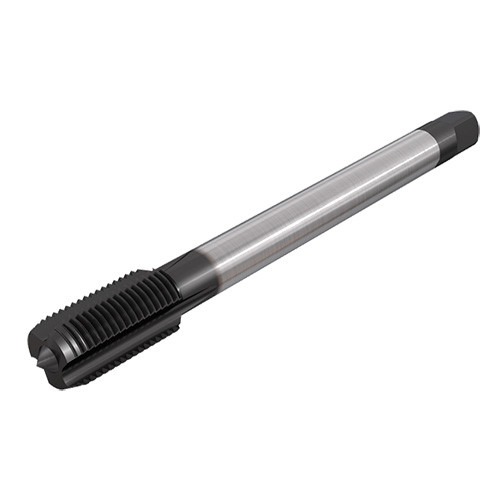

TPSTN MF-12X1.5-G PMTA
Straight Flute Tap; MF12 × 1.5 mm ; 3.937″ OAL ; 4 FL

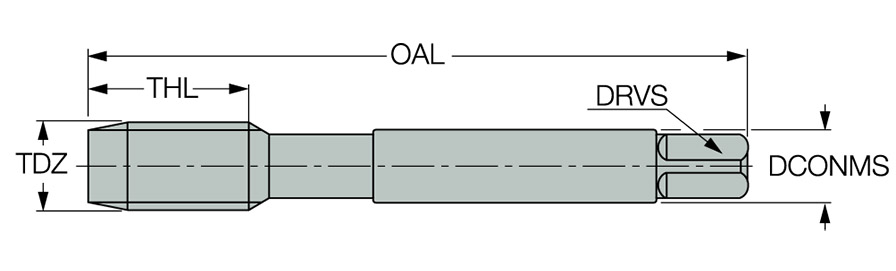

| Thread Diameter Size (TDZ) | MF12 | Standard | DIN 374 |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Machine Blind Hole Taps |
| Overall Length (OAL) | 3.937″ | Drive Size (DRVS) | 0.276″ |
| Thread Cutting Part Length (THL) | 0.709″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.354″ | Grade | PMTA |
| Flute Count (NOF) | 4 | Thread Size | F12 × 1.5 |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Body Material | HSS |
Product Features
| Family Description | PM Straight Flute Machine Taps - ISO Metric Fine Threads, According to DIN 13, for Gray Cast Iron | Country of Origin | Hungary |
Shipping Info
Package Weight
53
