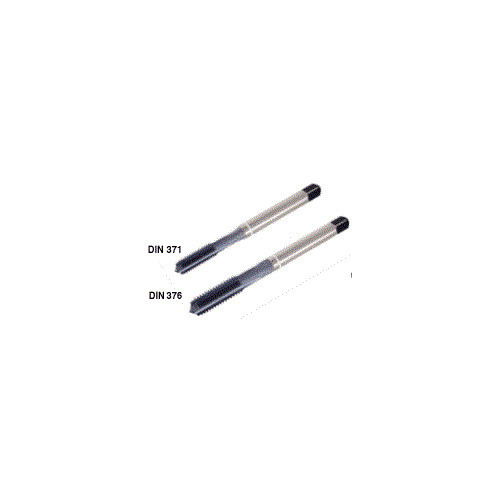

TPSTN M-8X1.25-G-B PMTA
Straight Flute Tap; M8 × 1.25 mm ; 3.543″ OAL ; 4 FL

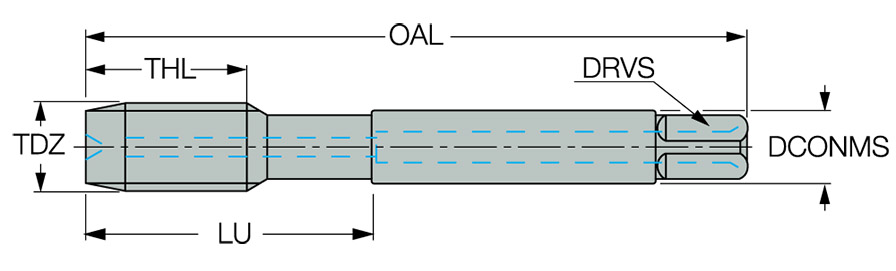

| Thread Diameter Size (TDZ) | M8 | Standard | DIN 371 |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Machine Blind Hole Taps |
| Overall Length (OAL) | 3.543″ | Drive Size (DRVS) | 0.244″ |
| Thread Cutting Part Length (THL) | 0.709″ | Measurement Type | Inch |
| Usable Length (LU) | 1.38″ | Grade | PMTA |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Thread Size | 8 × 1.25 |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
Product Features
| Family Description | HSS straight flute machine taps - ISO metric coarse threads, according to DIN 13, for grey cast iron. | Country of Origin | Hungary |
Shipping Info
Package Weight
29
