DDJNR16-4D 0

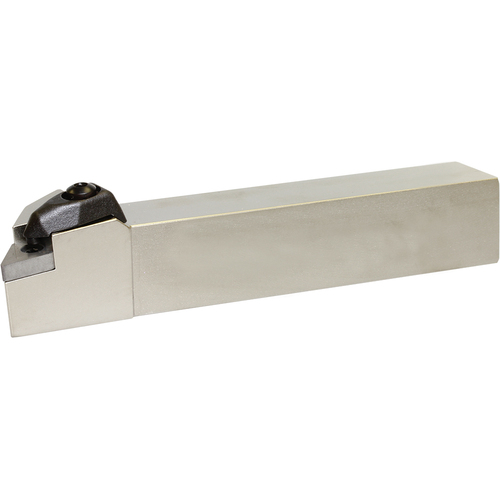

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.5354″ LH ; Right Hand ; Steel ; Series DDJN

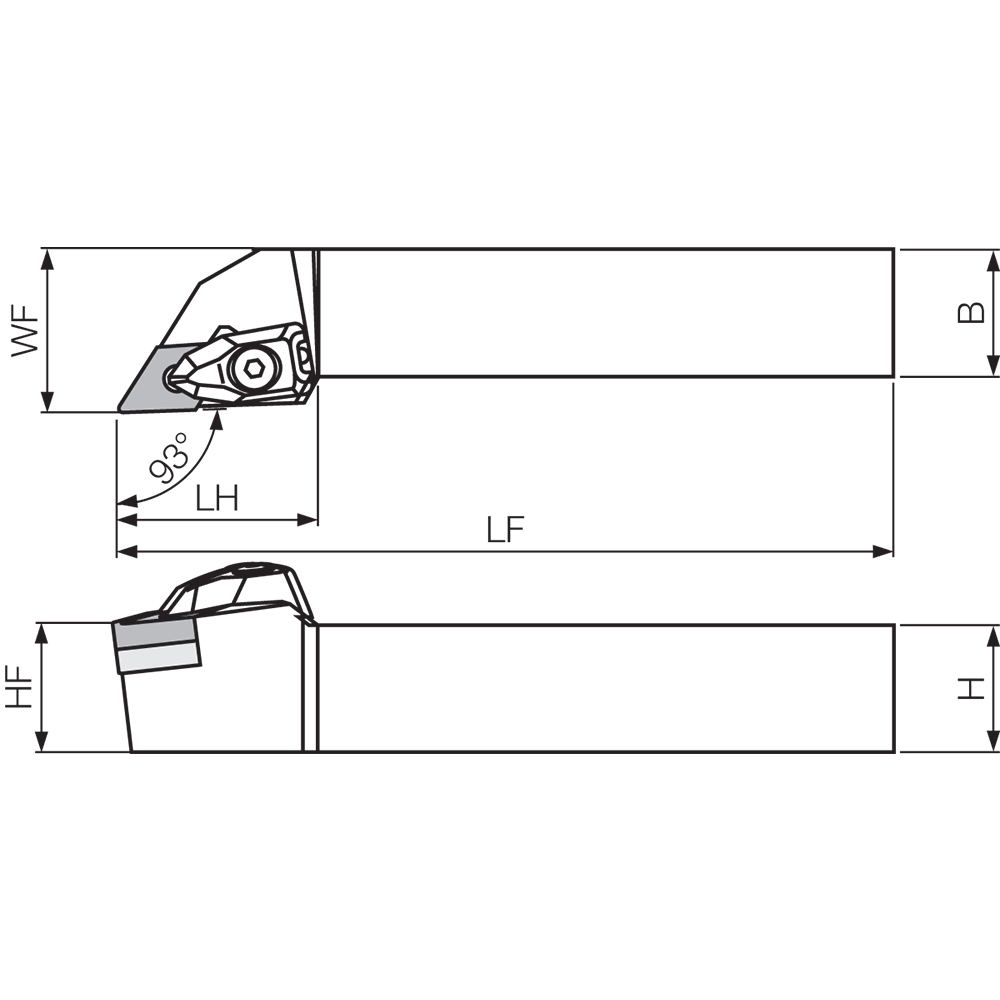

| Shank Height (H) | 1″ | Application | External Turning | Copying |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 6″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 1.5354″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | Clamping System | Double Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DN_A43… | DN_G43… | DN_M43… | DN_X43… | Series/List # | DDJN |
Product Features
| Family Description | Alternate Manufacture # DDJNR164D | Country of Origin | S.Korea |
Shipping Info
Package Weight
.9900
