TPAV18U5.00B1.50R12N

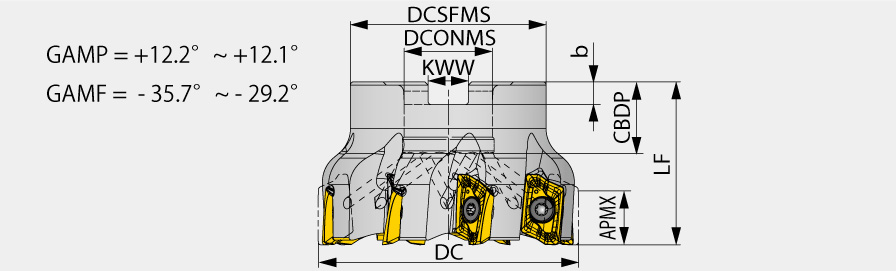

Indexable Face Mill; 5″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.65″ LOC ; 12 Inserts
| Cutting Diameter (DC/DCX) | 5″ | Master Insert Identification (MIID) | AVMT180708PDER-MM |
| Cutting Diameter (DC) | 5″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 5″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 12 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.65″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2″ |
| Overall Length (OAL) | 2″ |
Product Features
| Family Description | Square shoulder mill, bore type, with screw clamp system | Country of Origin | JAPAN |
| Remarks | Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
