EPAV18U1.00W1.00R02

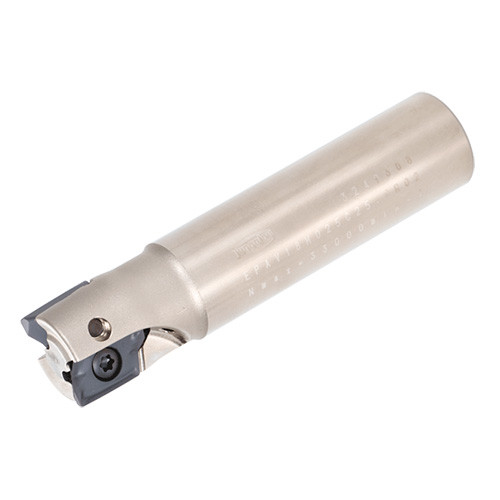

Indexable End Mill; 1″ Dia. × 0.649″ LOC × 1″ Shank Dia. × 4″ OAL ; Weldon Shank ; 90 Degrees

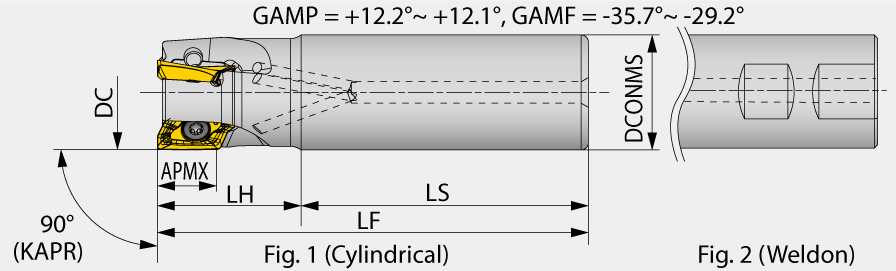

| Cutting Diameter (DC/DCX) | 1″ | Master Insert Identification (MIID) | AVMT180708PDER-MM |
| Cutting Diameter (DC) | 1″ | Head Length (LH) | 1-3/4″ |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 4″ |
| Depth of Cut Maximum (APMX) | 0.649″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | Country of Origin | JAPAN |
| Remarks | Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
