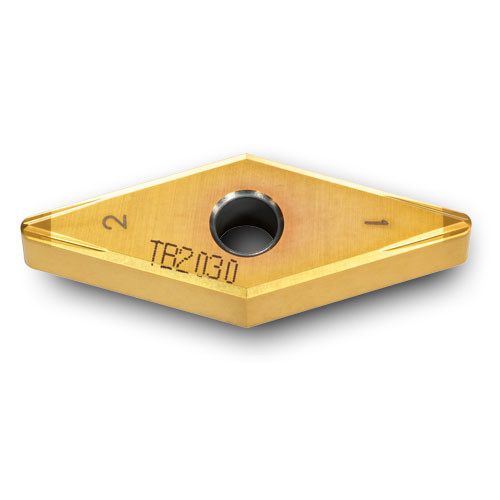

VNGM332CM-LS2 TB2030
| Corner Radius (RE) | 0.031″ | Depth of Cut Maximum (APMX) | 0.039″ |
| Cutting Edge Length (L) | 0.654″ | Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.012″ |
| Inscribed Circle Diameter (IC) | 3/8″ | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 35 Degrees | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Grade | TB2030 | Body Material | Carbide |
| Min D.O.C. | 0.02″ | Cutting Edge Effective Length (LE) | 0.086″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.051
