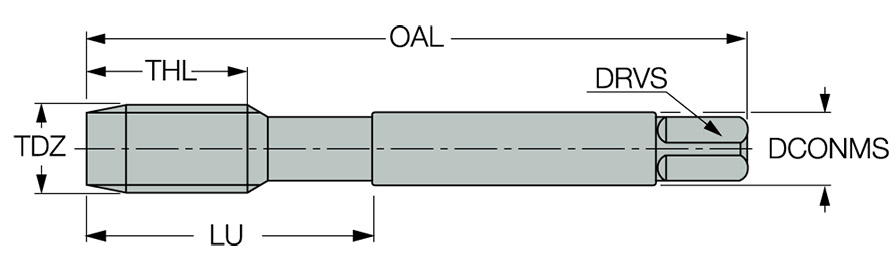

| Thread Diameter Size (TDZ) | M6 | Standard | DIN 371 |
| Thread Pitch (TP) | 1 mm | Tool Type | Machine Through Hole Taps |
| Overall Length (OAL) | 3.15″ | Drive Size (DRVS) | 0.193″ |
| Thread Cutting Part Length (THL) | 0.63″ | Measurement Type | Inch |
| Usable Length (LU) | 1.18″ | Grade | PMTI |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Thread Size | 6 × 1 |
| Flute Count (NOF) | 5 | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
Product Features
| Family Description | PM Cold Forming Machine Taps - ISO Metric Coarse Threads, According to DIN 13 | Country of Origin | Hungary |
Shipping Info
Package Weight
17
