TPFN MF-12X1.5-F PMTC
Straight Flute Tap; MF12 × 1.5 mm ; 3.937″ OAL ; 6 FL

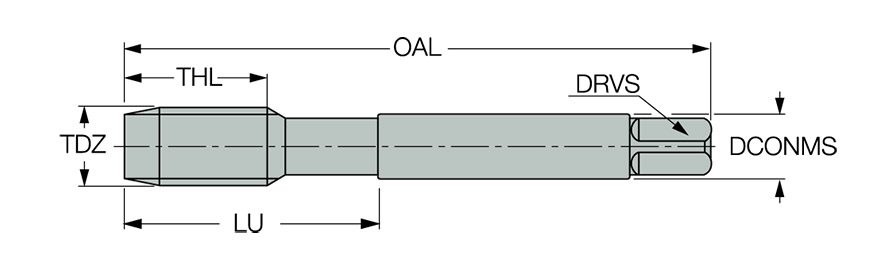

| Thread Diameter Size (TDZ) | MF12 | Standard | DIN 374 |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Machine Blind Hole Taps |
| Thread Standard | THFT | | Drive Size (DRVS) | 0.276″ |
| Overall Length (OAL) | 3.937″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.709″ | Grade | PMTC |
| Connection Diameter Machine Side (DCONMS) | 0.354″ | Thread Size | F12 × 1.5 |
| Flute Count (NOF) | 6 | Body Material | HSS |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | PM Cold Forming Machine Taps - ISO Metric Fine Threads, According to DIN 13 | Country of Origin | Hungary |
| Remarks | The material designation HE was recently changed to HENI. HENI and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
Package Weight
60
