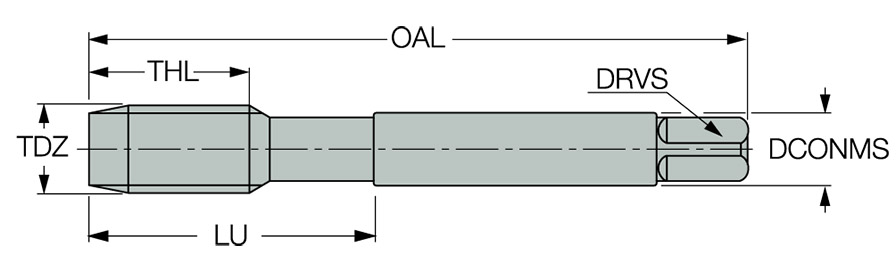

| Thread Diameter Size (TDZ) | UNC No.4 | Standard | DIN 371 |
| Threads per Inch (TPI) | 40 | Tool Type | Machine Through Hole Taps |
| Overall Length (OAL) | 2.205″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 0.394″ | Drive Size (DRVS) | 0.106″ |
| Usable Length (LU) | 0.71″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.138″ | Grade | HETI |
| Flute Count (NOF) | 2 | Thread Size | UNC No.4 - 40 |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Body Material | HSS |
| Cutting Edge Material | HSS |
Product Features
| Family Description | HSSE 5% Co gun point machine taps - unified coarse threads for a wide range of materials | Country of Origin | Hungary |
Shipping Info
Package Weight
136
