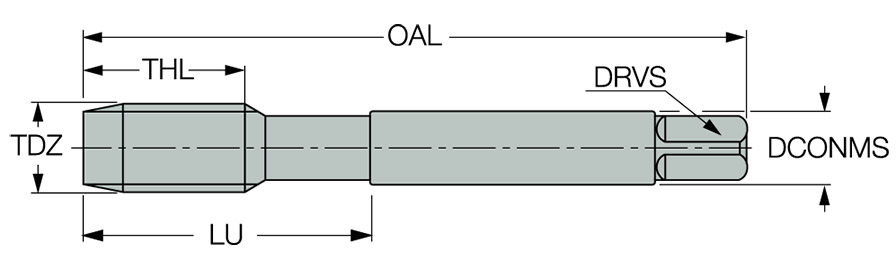

| Thread Diameter Size (TDZ) | UNF 1″ | Standard | DIN 376 |
| Threads per Inch (TPI) | 12 | Tool Type | Machine Through Hole Taps |
| Overall Length (OAL) | 5.512″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 1.102″ | Drive Size (DRVS) | 0.571″ |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Grade | HETI |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Size | UNF 1 - 12 |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features

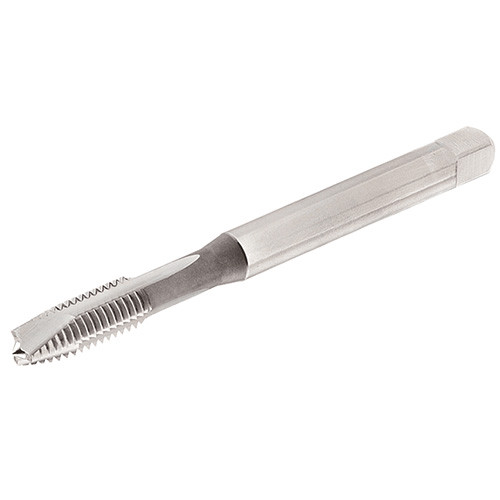

| Family Description | HSSE 5% Co Spiral Flute Machine Taps - Unified Fine Threads, for a Wide Range of Materials | Country of Origin | Hungary |
Shipping Info
Package Weight
302
